Vibrocompaction Design in Eugene Oregon

Q: What soil conditions in Eugene are ideal for vibrocompaction?

Clean sands to slightly silty sands with less than 15 percent fines and a clay fraction below 2 percent respond best. The loose floodplain deposits along the Willamette River, typically encountered between 5 and 40 feet deep, are prime candidates.

Q: How is the design verified after treatment?

Post-compaction CPT soundings are performed at centroid locations between probe points. The cone tip resistance is compared to pre-treatment baselines, and the data is correlated to relative density using published relationships by Baldi and others.

Q: What does vibrocompaction design cost for a typical Eugene project?

Design fees for a standalone vibrocompaction package in the Eugene area range from US$1,320 to US$5,040 depending on the treatment area, depth of loose soils, and number of verification soundings required. This includes the grid layout, compaction criteria, and post-treatment QA/QC plan.

The Willamette River has shaped Eugene’s subsurface for millennia, leaving behind thick deposits of loose alluvial silts and sands that challenge any foundation. With the city's proximity to the Cascadia Subduction Zone, these granular soils are susceptible to settlement and liquefaction during a seismic event. Vibrocompaction design in Eugene must account for variable groundwater tables and the transition zones between valley fill and older terrace gravels. Our approach integrates site-specific CPT testing to map target layers and liquefaction analysis per NCEER protocols, ensuring the Improvement strategy fits the depositional complexity unique to this part of Lane County.

Post-treatment verification in Eugene’s river deposits typically shows a 30 to 60 percent increase in cone tip resistance within the treated zone.

Our service areas

Scope of work

Urban expansion in the Whiteaker and downtown areas has pushed development onto historic floodplain soils with SPT blow counts often below 10 in the upper 25 feet. Vibrocompaction relies on depth vibrators to densify these granular strata in-situ, reducing void ratios and increasing relative density. Key design parameters include probe spacing, vibration frequency, and duration per increment. The process is verified through post-treatment CPT or SPT comparisons, confirming that target density criteria are met. For mixed soils with fines content above 12-15 percent, the design must evaluate whether a complementary technique like stone columns would be more effective at drainage and reinforcement.

Vibrocompaction Design in Eugene Oregon — Technical reference — Eugene Oregon

Area-specific notes

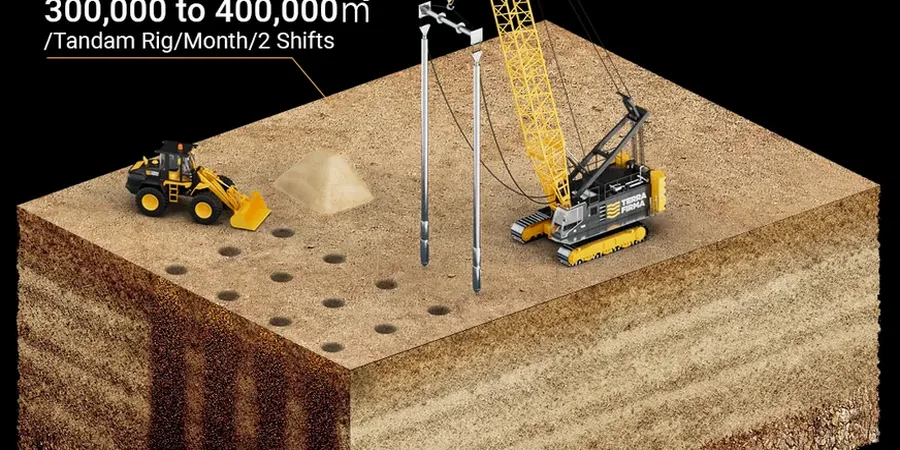

A hydraulic vibroflot suspended from a crawler crane moves across the site, injecting water at the tip to fluidize the sand as the probe penetrates under its own weight. In Eugene’s tighter urban lots, maneuvering this equipment requires careful logistics and vibration monitoring near adjacent structures. The design must limit peak particle velocity to avoid damage to nearby utilities or older unreinforced masonry buildings common in the downtown core. Inadequate compaction can leave loose lenses that become collapse zones under cyclic loading, while over-compaction risks heave or excessive lateral displacement in confined sites.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.com

Standards used

ASTM D1586-18 Standard Test Method for Standard Penetration Test (SPT), ASCE 7-22 Minimum Design Loads and Associated Criteria, NCEER Workshop on Evaluation of Liquefaction Resistance

Reference parameters

Parameter	Typical value
Typical treatment depth	10 to 65 ft below grade
Soil type suitability	Clean sands to silty sands (fines < 15%)
Vibrator power	130 to 250 kW electric or hydraulic
Probe spacing (square grid)	5 to 12 ft on center
Target relative density	70 to 85% (per project spec)
Verification method	Pre- vs post-CPT/SPT correlation

Common questions

What soil conditions in Eugene are ideal for vibrocompaction?

Clean sands to slightly silty sands with less than 15 percent fines and a clay fraction below 2 percent respond best. The loose floodplain deposits along the Willamette River, typically encountered between 5 and 40 feet deep, are prime candidates.

How is the design verified after treatment?

Post-compaction CPT soundings are performed at centroid locations between probe points. The cone tip resistance is compared to pre-treatment baselines, and the data is correlated to relative density using published relationships by Baldi and others.

What does vibrocompaction design cost for a typical Eugene project?

Design fees for a standalone vibrocompaction package in the Eugene area range from US$1,320 to US$5,040 depending on the treatment area, depth of loose soils, and number of verification soundings required. This includes the grid layout, compaction criteria, and post-treatment QA/QC plan.
